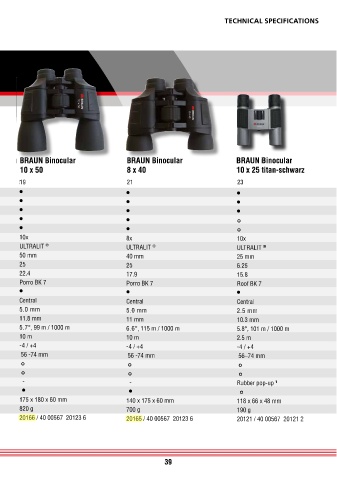

Page 39 - A5

Technical specificaTions Technical specificaTions

BRAUN binoculars excel in robustness,
modern design and high-quality optics.

Folder page
Leisure + travel • • • • •
Events • • • • •
Outdoor • • • • •
Bird + game watching, hunting • • • ° °
Astronomy • • • ° °
Magnification 7x 10x 8x 10x 10x
Lens system ULTRALIT ® ULTRALIT ® ULTRALIT ® ULTRALIT ® ULTRALIT ®
Lens diameter 50 mm 50 mm 40 mm 25 mm 25 mm
Light value 42.3 25 25 6.25 6.25
Twilight number 18.7 22.4 17.9 15.8 15.8
Prism Porro BK 7 Porro BK 7 Porro BK 7 Roof BK 7 Roof BK 7
Lens coating • • • • •
Focusing Central Central Central Central Central
Exit pupil 6.5 mm 5.0 mm 5.0 mm 2.5 mm 2.5 mm
Eye relief 15 mm 11.8 mm 11 mm 10.3 mm 10.3 mm
Field of view 7.5°, 130 m / 1000 m 5.7°, 99 m / 1000 m 6.6°, 115 m / 1000 m 5.8°, 101 m / 1000 m 5.8°, 101 m / 1000 m

Close focus distance 10 m 10 m 10 m 2.5 m 2.5 m
Diopter adjustment -4 / +4 -4 / +4 -4 / +4 -4 / +4 -4 / +4
Interpupillary distance 56 -74 mm 56 -74 mm 56 -74 mm 56–74 mm 56–74 mm
Waterproof (max. depth/time) ° ° ° ° °
Nitrogen filled ° ° ° ° °
Eyecup system - - - Rubber pop-up 1 Rubber pop-up 1
Thread for tripod • • • ° °
Dimensions 190 x 190 x 65 mm 175 x 180 x 60 mm 140 x 175 x 60 mm 118 x 66 x 48 mm 112 x 65 x 44 mm
Weight 850 g 820 g 700 g 190 g 180 g
Item no. / EAN 20123 / 40 00567 20123 6 20166 / 40 00567 20123 6 20165 / 40 00567 20123 6 20121 / 40 00567 20121 2 20122 / 40 00567 20122 9
Accessories: Ever-ready case, carrying strap, cleaning cloth, operating instructions.
•
Legend: = yes, ° = no, = fold down eyecups, = twist-type snap-on eyecups
2
1
